HP ProBook 450 15.6 inch G10 Battery Replacement Guide

A device's battery will eventually deteriorate and stop working properly. Especially the battery, the general battery life is 3-5 years, This can cause your device to stop charging or it will fail to maintain charge. This guide will show you how to replace the battery of the HP ProBook 450 15.6 inch G10 laptop.

Preparation before replacement ( battery . Toolkit)

Step 1: Open the back cover, please be careful

• 1. Ensure the HP ProBook 450 15.6 inch G10 is powered off and placed on a soft, clean surface to prevent scratches or damage.
• 2. Undo the 5 captive Phillips-head screws on the bottom of the laptop. These screws will stay attached to the bottom panel, minimizing the risk of loss.
• 3. Lift the bottom panel near one of the top corners to create a slight gap, then use a thin plastic tool to pry the corner. Continue prying along all sides of the device to fully remove the panel.
Hint: Be gentle when prying to avoid damaging the internal clips or the laptop casing.

Step 2: Removing the ProBook 450 G10 Battery

• 1. Disconnect the battery by unplugging its connector from the motherboard.
• 2. Remove the four Phillips-head screws securing the battery to the chassis, then lift the 51.3Wh battery from the device.

Step 3: Install new batteries

• 1. Unpack the new battery and make sure the new battery and the old battery have the same appearance, capacity and voltage.
• 2. Align the battery and re-screw the four cross-slot screws fixed to the chassis.

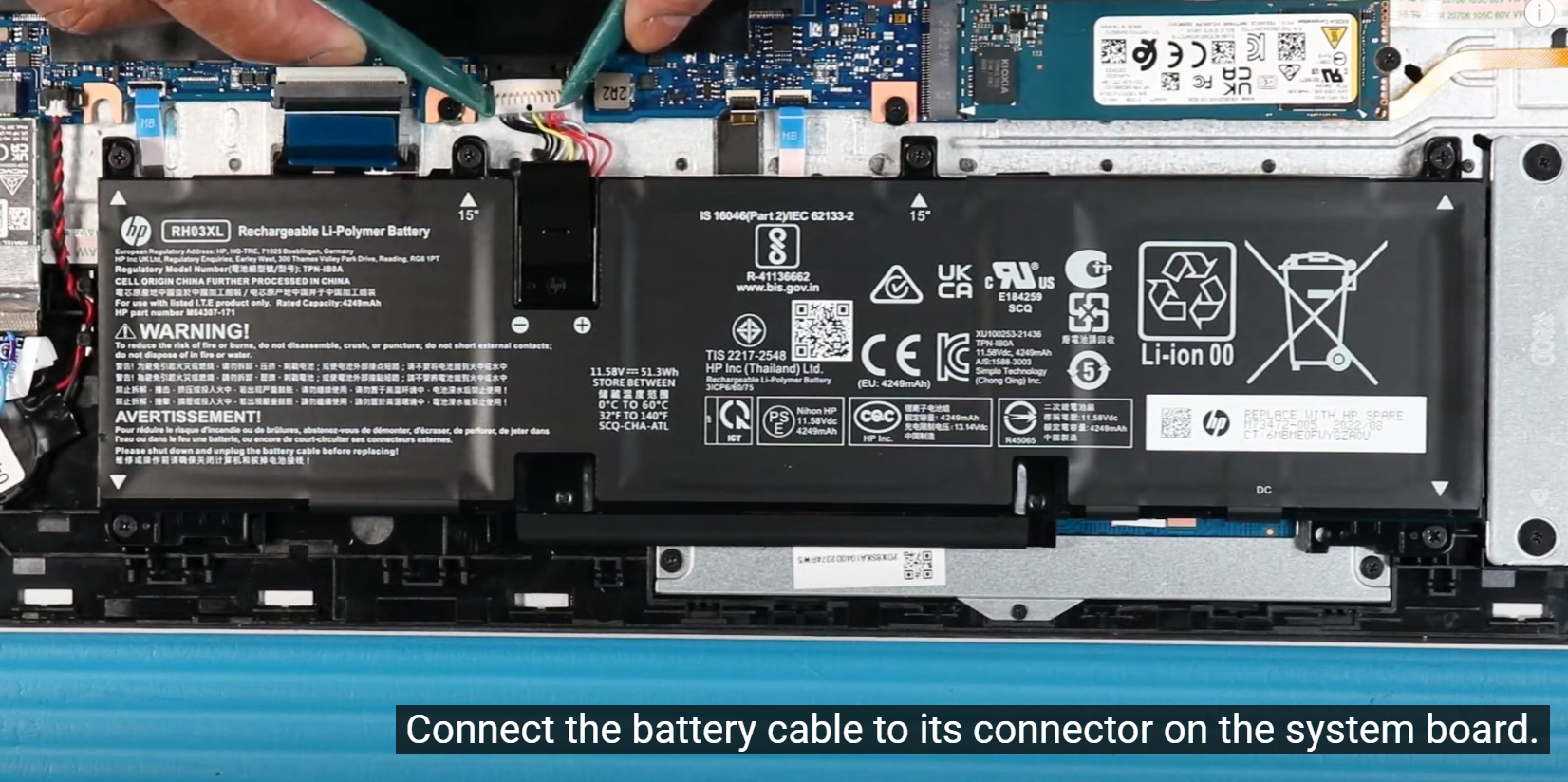

• 3. Re-install the connection wires and test whether the device can be turned on normally.
• 4. When everything is perfect, re-install the back cover and the ProBook 450 15.6 inch G10 battery replacement is complete.
